Beschrijving

General:

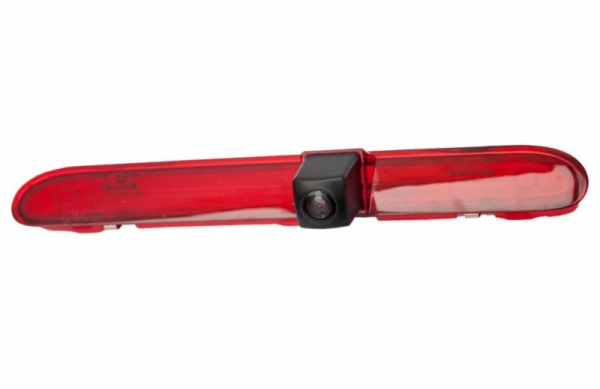

This reversing camera is specially dedicated for Peugeot/Citroen/Toyota vehicles. The inconspicuous, robust camera simply replaces the brake light.

The camera is complete including plug and play cable kit which allows easy plug and play installation. The camera is waterproof according to the IP69K certification level.

Features:

1/3” Sony HD CCD lens
Mirror picture
700TVL
Ajustable lens
Lens angle 170 degrees # Waterproof according to IP69K certification level
10 meter cable included (4-pins to RCA).

The following is provided in the set:

Transporter brake light reversing camera NTSC
Video extension cable 10 meter
Power cable with RCA connector
male-male RCA adapter
Installation manual
Invoice
Warranty

Additional information:

Check before you order the camera for the compatibility on the tab “Compatibility” or the model.
With a multimedia interface or video interface it is possible to connect the camera with the original navigation system, ask for the possibilities.
No IR Leds

Technical features:

IP rating: IP69K (Weatherproof)
Image Sensors : Color 1/3″ SONY CCD HD
TV System: NTSC
Effective Pixels: NTSC 648×488 Pixel
Sensing Area: 4. 9 × 3.7 mm
Horizontal Resolution: 700 TV Line
Horizontal Sync.Frequency: 15.625 / 15.734 kHz
Vertical Sync.Frequency : 50/60 HZz
Video output: 1Vp-p,75Ohm
Gamma Consumption: 0.45
Auto Gain Controle: Automatic
Back Light Compensation: Automatic
S/N Ratio: Better than 48dB
Lens Angle: 170° (degrees)
Power Consumption: <3W
Power Supply: DC +12V (10%)
Operating Temperature: -30 C to +70 C
Storage Temperature : -40 C to +80 C
Connection: 4-pins to RCA
Image: Mirror
FCC,CE, E-mark?ISO9001,TS16984, RoHs
